Pallet X-Ray Machines

Pallet X-Ray for swift, accurate security scans

The range of X-ray machines designed for pallet cargo scanning with large tunnel openings and roller conveyor supplied in a variety of sizes with large tunnel openings for pallet cargo screening.

spectrum_180180_S_net-1920w

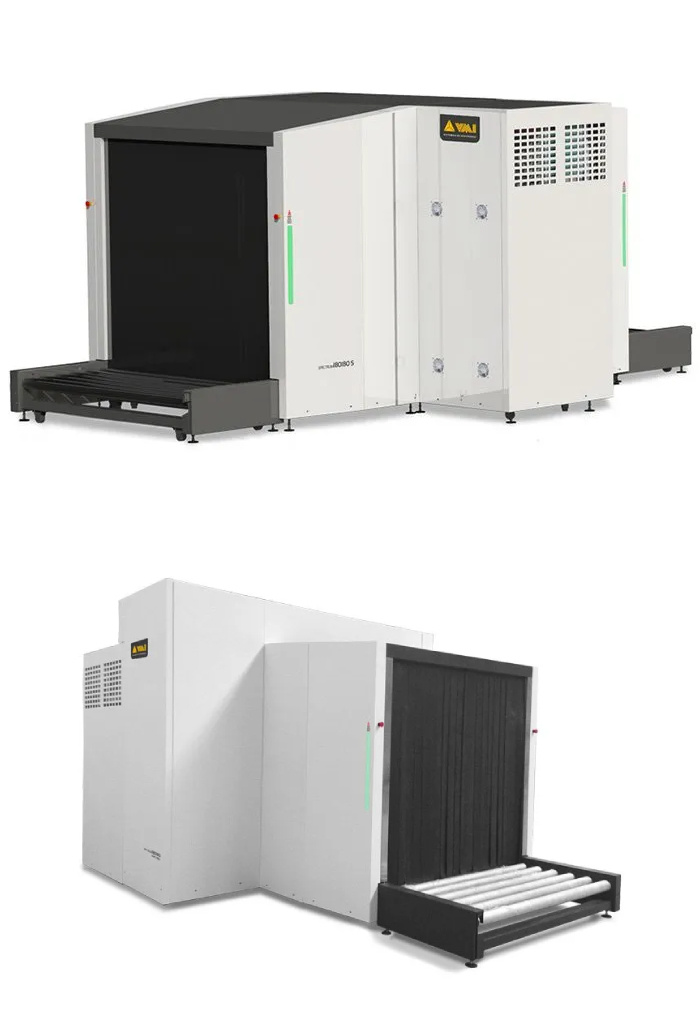

Spectrum 180180

Check entire pallets for quick and accurate security screening

The Spectrum 180180, is an X-ray inspection system with a high level of performance, greater sharpness, and image quality. It has been specially designed to meet the needs and applications of airports, customs services, transportation services, carriers, transportation operations, or in any other environment where high security and complete screening is required.

Key Features:
  • High image quality with resolution of 36AWG and steel penetration of 48mm (SV) and 70mm (DV).
  • Equipment that does not require protection radiological, complying with all international standards requirements for health and safety standards both for operators as well as for the public.
  • Automatic detection and alarm for drugs and explosives.
  • Random projection of dummy images of threat objects, to train the operator skills (TIP).
  • Continuous or local zoom functions for easy and accurate image evaluation.
  • Enables the export of images in commercial format of the type JPEG, GIF, TIFF and BMP for memory devices (USB) he ergonomic and simple keyboard operation interface provide efficiency and ease for the operator.
  • Custom hardware and software to meet customer demands
Download Brochure
high-qualkity-image-1920w

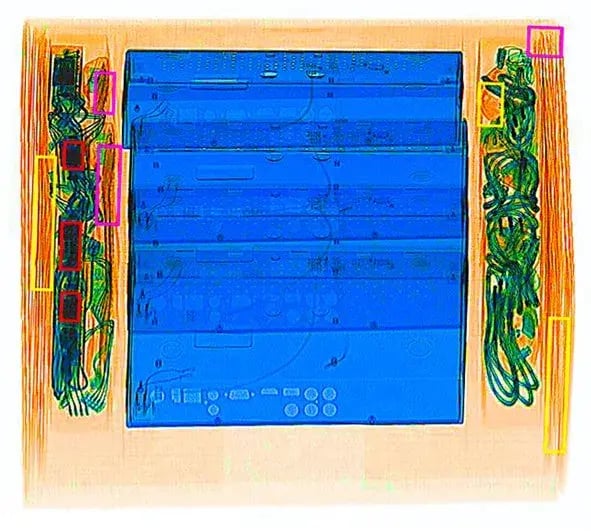

High quality images

large-inspection-chamber-1920w

Large inspection chamber

diferentiate-between-materials-1920w

Differentiate between materials

scan07_bx-1920w
Machine specification for Spectrum 180180 X-Ray Machine
Feature Specification
Tunnel size 1550 mm (W) / 1805 mm (H)t
Conveyor speed 0.20 m/s (Configurable)
Conveyor height 340mm
Max load 3000kg
Standard generator 200 kV (Configurable)
Wire resolution 36 AWG
Steel penetration 49 mm
Cooling Insulating oil with forced air cooling
Beam direction Diagonally upward

Fast, accurate pallet X-ray scanning

Ideal for warehouses and shipping

0118 951 9800
spectrum_150180_S_dir_net-1920w

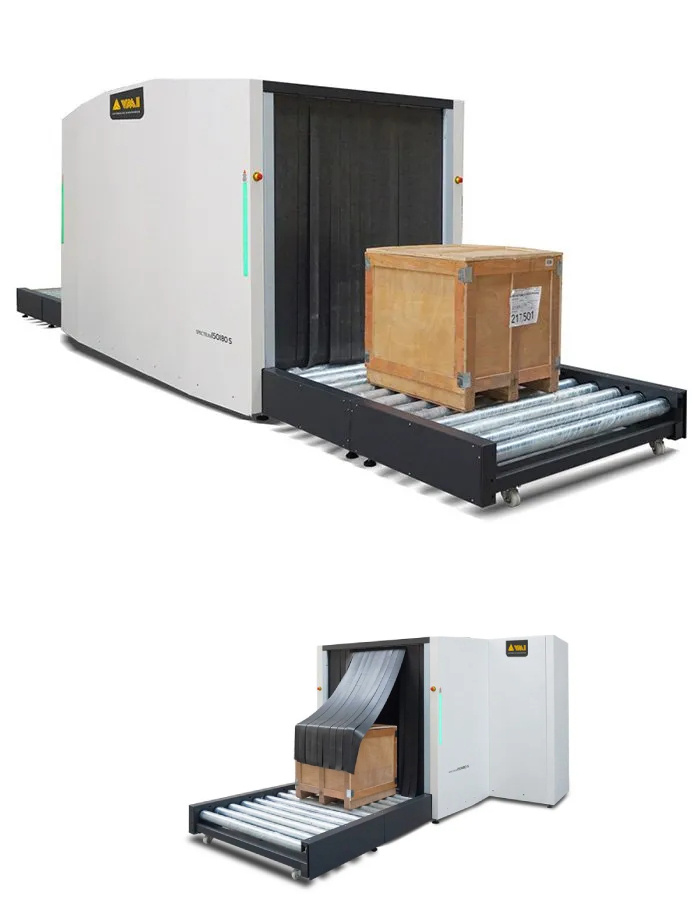

Spectrum 150180

Fast, precise, and easy-to-use X-ray checks

The Spectrum 150180 has been specially designed to meet the needs and applications of warehouses, shippers, customs brokers, and couriers for airports.

  • High image quality with a wire resolution of 36 AWG and steel penetration of 49 mm
  • Meets all of the international standards for health and safety of operators and members of the public
  • Drugs and explosives automatic detection and alarm
  • Random projection of images containing fictitious threat objects for operator skills training (TIP function)
  • Continuous or region zoom function for easy and precise evaluation of the image
  • Can export images in commercial file formats (JPEG, TIFF and BMP) onto a USB device
  • Ergonomic keyboard and simple operator interface provide efficiency and ease for the operator.
  • Hardware and software customized to meet customer requirements
Download Brochure
Machine specification for Spectrum 150180 X-Ray Machine
Feature Specification
Edit Tunnel size 1550 mm (W) / 1805 mm (H)t
Conveyor speed 0.20 m/s (Configurable)
Conveyor height 340mm
Max load 3000kg
Standard generator 200 kV (Configurable)
Wire resolution 36 AWG
Steel penetration 49 mm
Display Monitor LCD, colour, high-resolution (Configurable size)
Cooling Insulating oil with forced air cooling
Beam direction Diagonally upward
Dimensions 5200mm(L)x2350mm(W)x2300mm(H)
Weight 2500kg
Power consumption 2.5kVA
Operating temperature / humidity 0° – 40°C / 5% – 95% (Non-condensing)
Storage temperature / humidity -40° – 60°C / 5% – 95% (Non-condensing)
Power supply 127 Vac / 220 Vac 230Vac (-15% – +10%); 50Hz/60Hz +/-3Hz
