Forensics X-Ray Machines

Forensics X-Ray for medical examinations

Innovative full-body X-ray equipment developed specifically for forensic analysis and to serve legal medical institutes and hospitals. The equipment has digital technology and uses a high-performance X-ray generator with dose control that optimises the level of exposure required for each inspected body part.

Flatscan-DF08-DV_net-1920w

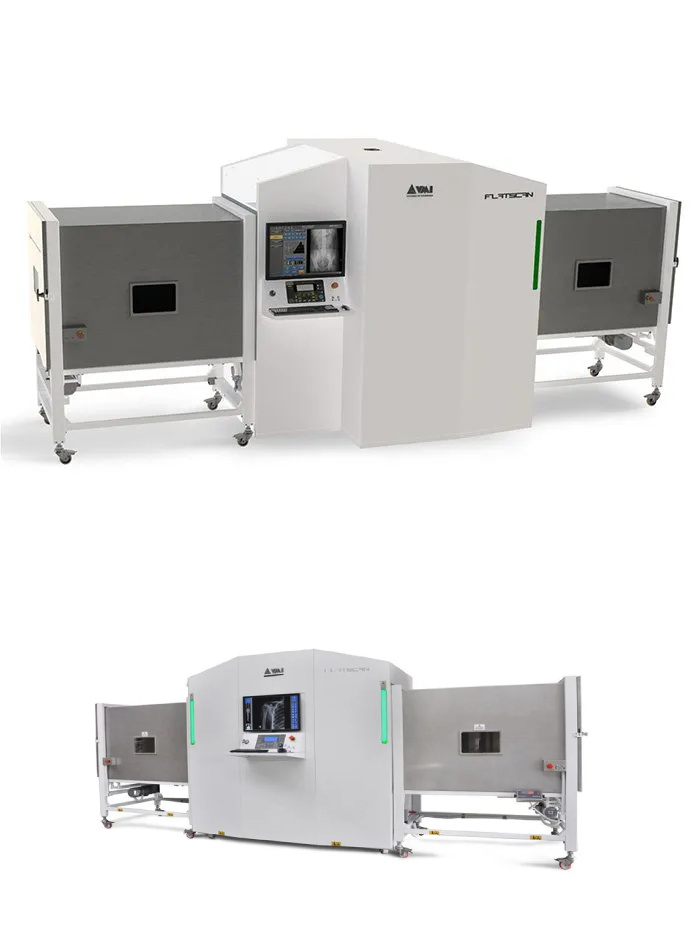

Flatscan DF80 SV / DV

Innovation in forensic analysis with full body X-ray machines

The Flatscan DF-80 SV / DV is a revolutionary whole body digital X-ray system, designed specifically for forensic screening. DV series allows AP (front to back) and lateral imaging acquisition without any contact or movement of the body.

This portable system is self-contained and advanced self-shielding technology permits operation without the need for a special or exclusive room to operate in.

Spectrum Flatscan DF-80 SV/DV X-ray machine
  • Image export via USB or network connection in DICOM, JPG, and BMP file formats
  • Self-diagnostic function for maintenance
  • OPeration password-protected console near to the equipment
  • Visual signaling during X-ray emissions
  • Digital zoom provided by image processing software
  • Automatic adjust of brightness and contrast
  • Angle and dimensions measuring function
  • Ability to print images on paper or radiographic film
  • Integrated digital scale for body weighing
  • Removable rolling table, allowing easier cleansing
  • Equipment with unique automatic positioning system controlled by the software which allows AP and lateral image
  • acquisition without any movement of the body
Download Brochure

Excellent picture quality

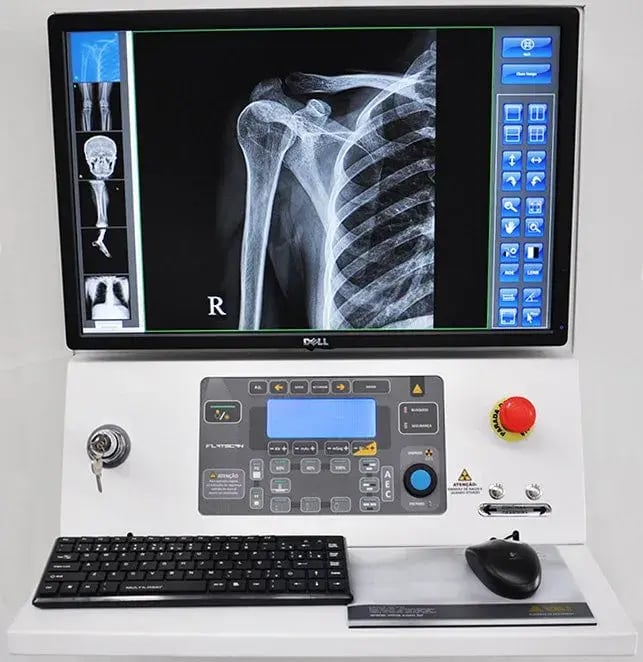

Central control for easy operation.

controle_flatscanDF80-1920w
Features Specification
Tunnel size 800mm x 800mm
Dimensions 4902mm (L) x 1770mm (W) x 2028mm (H)
Weight 3000kg
Roller table height 800mm (configurable)
Maximum load weight 250kg
Storage temperature / humidity 0°C a 40°C / 5% a 80%
Operating temperature / humidity 10°C a 35°C / 20% a 55%
Image resolution 2560 x 2560
X-ray tube High resolution with rotating anode
Power supply 220 Vac or 380 Vac three-phase
