CHECKPOINT X-RAY MACHINES

Checkpoint

X-Ray Machines

Checkpoint X-Ray - prisons and border checks

The Checkpoint range of Spectrum X-Ray machines were developed for high security checks at prisons, airports, border controls and large events. When speed and accuracy are needed to check larger number of packages, the checkpoint scanner range is essential.

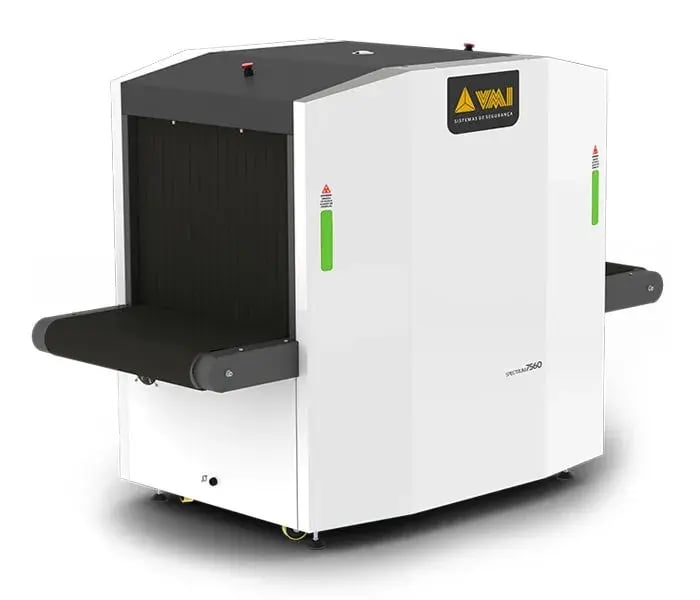

Spectrum 7560

Checkpoint security X-ray scanner

High quality images

Large inspection chamber

Differentiate between materials

The Spectrum 7560 is specifically designed to meet the needs and applications of airports, prisons, railways and subways, stadiums, courts, parcel services, or wherever high security is required.

Key Features:



  • High image quality with a wire resolution of 40 AWG and steel penetration of 38mm (Standard), 40mm (Plus).
  • Meets all the international standards for health and safety of operators and members of the public.
  • Drugs and explosives automatic detection and alarm.
  • Random projection of images containing fictitious threat objects for operator skills training (TIP function).
  • Continuous or region zoom functions for easy and precise evaluation of the image.
  • Can export images in commercial file formats (JPEG, TIFF and BMP) onto a USB device
  • Ergonomic keyboard and simple operator interface provide efficiency and ease for the operator.
  • Hardware and software customized to meet customer requirements.
Download Brochure

  • Slide title

    Write your caption here
    Button

  • Slide title

    Write your caption here
    Button

  • Slide title

    Write your caption here
    Button

Machine specification for Spectrum 7560 X-Ray Machine

Feature Specification
Dimensions 2080 x 1050 x 1450mm
Conveyor height 668mm
Tunnel size 752 x 610mm
Conveyor speed 0.24m/s
Conveyor load 150kg
Approx Weight 620kg
Power system 127Vac / 220Vac (-15% +10%); 50Hz/60Hz, +/-3Hz

X-ray machines for border security checks

Ask about the range available today

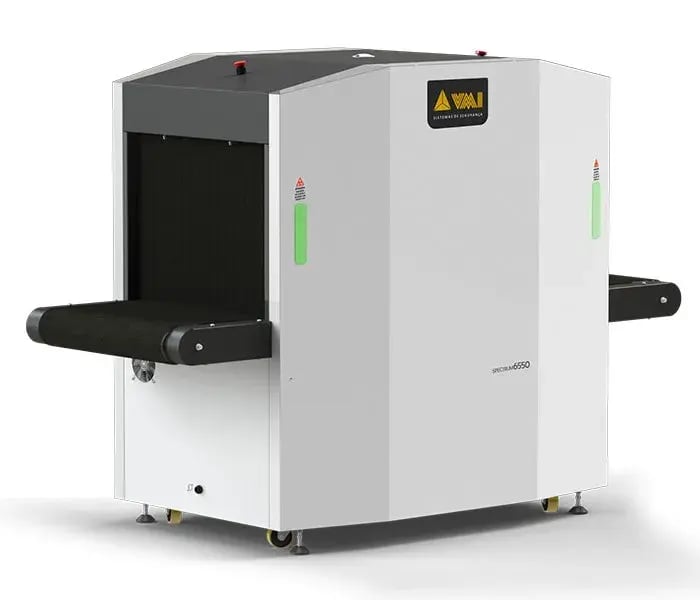

Spectrum 6550

Powerful checkpoint X-ray screening
The Spectrum 6550 is specifically designed to meet the needs and applications of airports, prisons, railways and subways, stadiums, courts, parcel services, or wherever high security is required.
  • High image quality with a wire resolution of 40 AWG and steel penetration of 40 mm (160kV), 44mm (180kV).
  • Meets all the international standards for health and safety of operators and members of the public.
  • Drugs and explosives automatic detection and alarm.
  • Random projection of images containing fictitious threat objects for operator skills training (TIP function).
  • Continuous or region zoom functions for easy and precise evaluation of the image.
  • Can export images in commercial file formats (JPEG, TIFF and BMP) onto a USB device.
  • Ergonomic keyboard and simple operator interface provide efficiency and ease for the operator.
  • Hardware and software customized to meet customer requirements.
Download Brochure

  • Slide title

    Write your caption here
    Button

  • Slide title

    Write your caption here
    Button

  • Slide title

    Write your caption here
    Button

Machine specification for Spectrum 6550 X-Ray Machine

Feature Specification
Dimensions 2080 x 950 x 1450mm
Conveyor height 710mm
Tunnel size 665 x 520mm
Conveyor speed 0.24m/s
Conveyor load 150kg
Approx Weight 560kg
Power system 127Vac / 220Vac / 230Vac (-15% +10%); 50Hz/60Hz, +/-3Hz

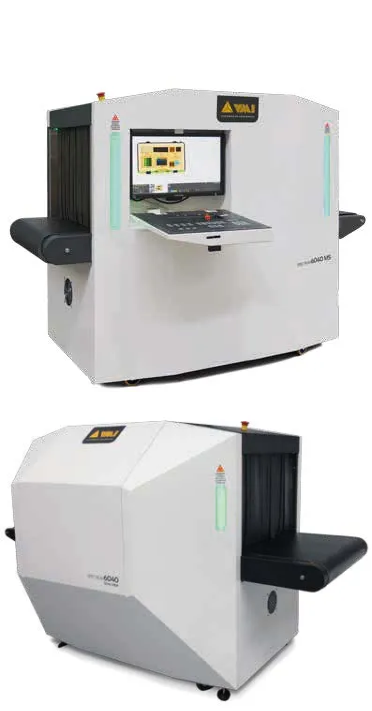

Spectrum 6040

State of the art checkpoint X-ray screening

The Spectrum 6040 is made up of robust equipment specifically designed to meet the needs and applications that demand high inspection and image quality, such as airports, prisons, railways and subways, stadiums, courts, ordering services, or where high security is required.

The Spectrum 6040 uses a state-of-art high-power X-ray generator (180kV) that meets the highest image quality and penetration requirements for even faster and more efficient inspection.

  • High image quality with resolution of 40AWG and 42mm steel penetration (Standard) and 44mm (Plus).
  • Equipment that does not require protection radiological, complying with all international standards requirements for health and safety standards, both for operators as well as for the public.
  • Automatic detection and alarm for drugs and explosives.
  • Random projection of dummy images of threat objects, to train the operator skills (TIP).
  • Continuous or local zoom functions for easy and accurate image evaluation.
  • Enables the export of images in commercial format of type JPEG, GIF, TIFF and BMP for memory devices (USB).
  • The ergonomic and simple keyboard operation interface provide efficiency and ease for the operator.
  • Custom hardware and software to meet customer demands
Download Brochure

Machine specification for Spectrum 6040 X-Ray Machine

Feature Specification
Dimensions 2080 x 950 x 1450mm
Conveyor height 710mm
Tunnel size 665 x 520mm
Conveyor speed 0.24m/s
Conveyor load 150kg
Approx Weight 560kg
Power system 127Vac / 220Vac / 230Vac (-15% +10%); 50Hz/60Hz, +/-3Hz
