Cabinet X-Ray Machines

X-ray units for any size of building

The AXIS-CXi X-Ray cabinet is the perfect one-size-fits-all system for screening mail, parcels and small baggage for potentially harmful items and contraband. This mobile unit can be located in any building, and had a professional and smart modern look that won’t look out of place in reception area, mailrooms, or hotels.

The AXIS-CXi security scanning cabinet is the only cabinet based screening system with aviation standard Materials Discrimination capability.

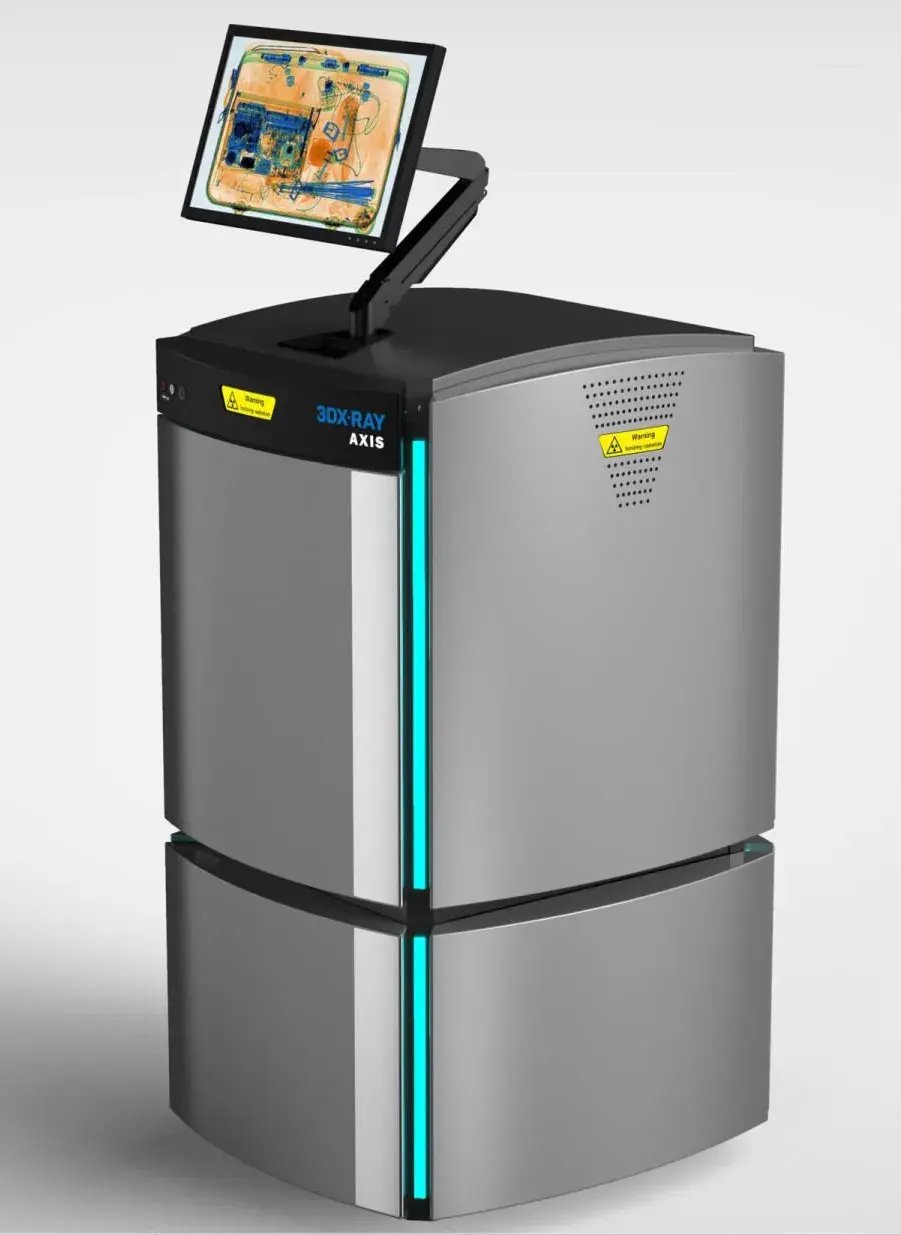

3D-X-Ray-CabinetScan-AXIS-Cxi-0001-scaled-77ac05a6-1920w-1

CabinetScan AXIS-CXi

Screening mail, parcels, and baggage

Screening mail, parcels, and baggage for potentially harmful items and contraband is easy with your new AXIS-CXi X-ray system.

Designed to fit neatly where space is at a premium the CXi offers a large inspection chamber and imaging area – whilst retaining a small footprint.

It is a mobile unit suitable for applications such as:
  • Building Entrances
  • Mail Rooms
  • Reception Areas
  • Hotel Lobbies
  • Goods In
  • Executive Mail Screening
  • Loss Prevention
  • Contraband Detection
Download Brochure
high-qualkity-image-1920w

High quality images

large-inspection-chamber-1920w

Large inspection chamber

small-footprint-1920w

Small footprint

diferentiate-between-materials-1920w

Differentiate between materials

Take a closer look at the AXIS-CXi X-Ray Cabinet

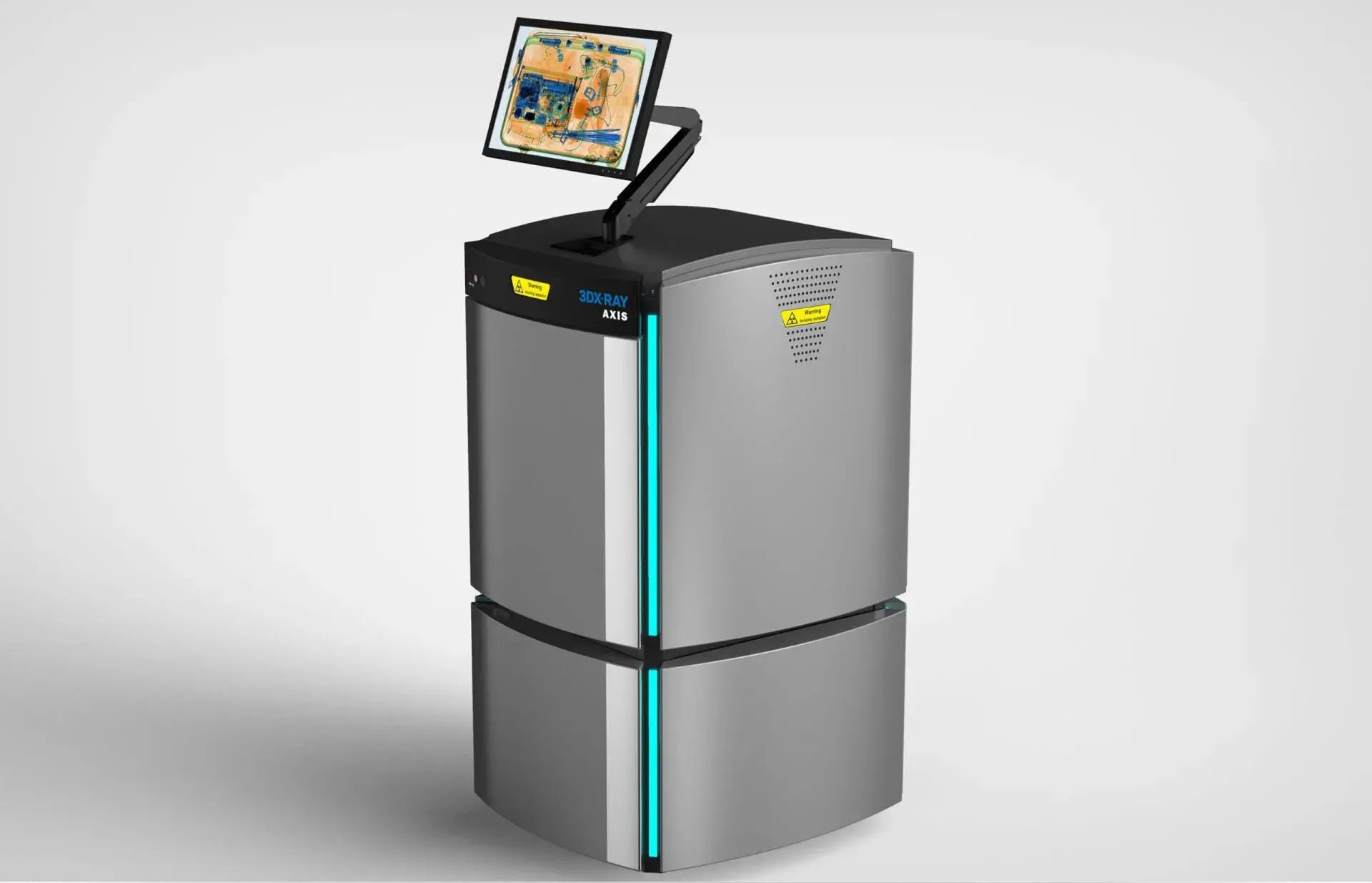

3D-X-Ray-CabinetScan-AXIS-Cxi-0001-scaled-1920w

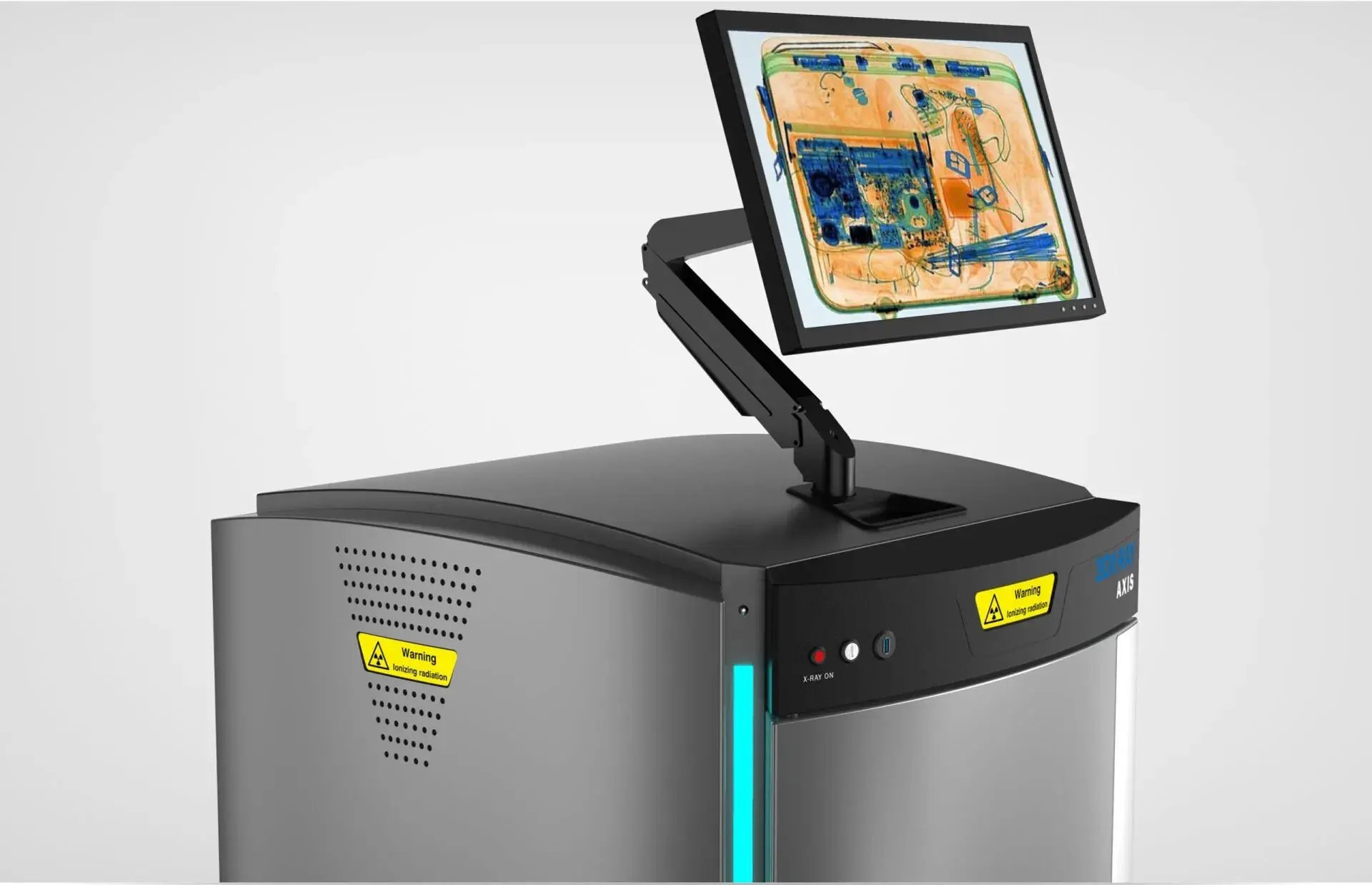

3D-X-Ray-CabinetScan-AXIS-Cxi-0002-scaled-1920w

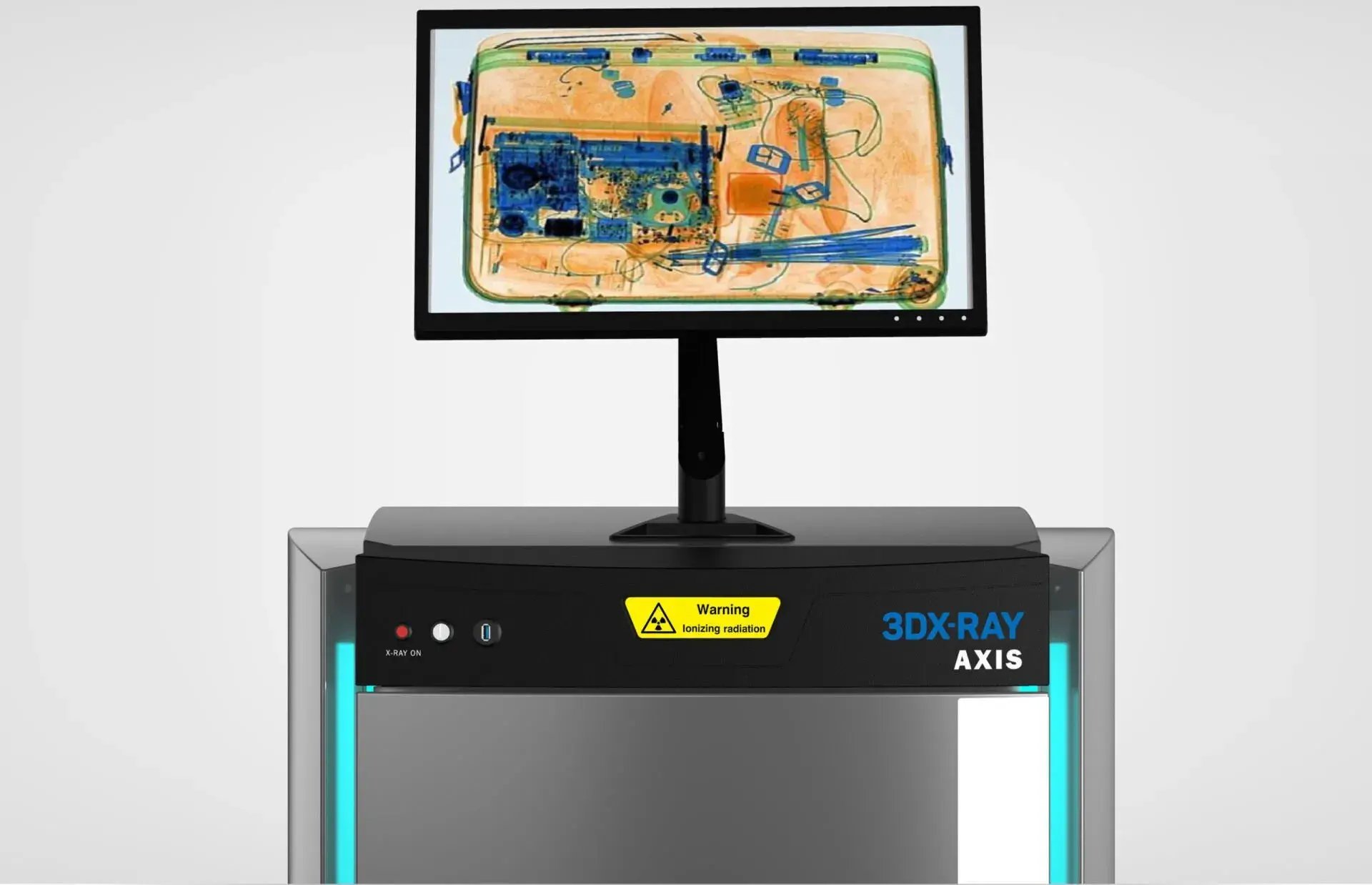

3D-X-Ray-CabinetScan-AXIS-Cxi-0003-scaled-1920w

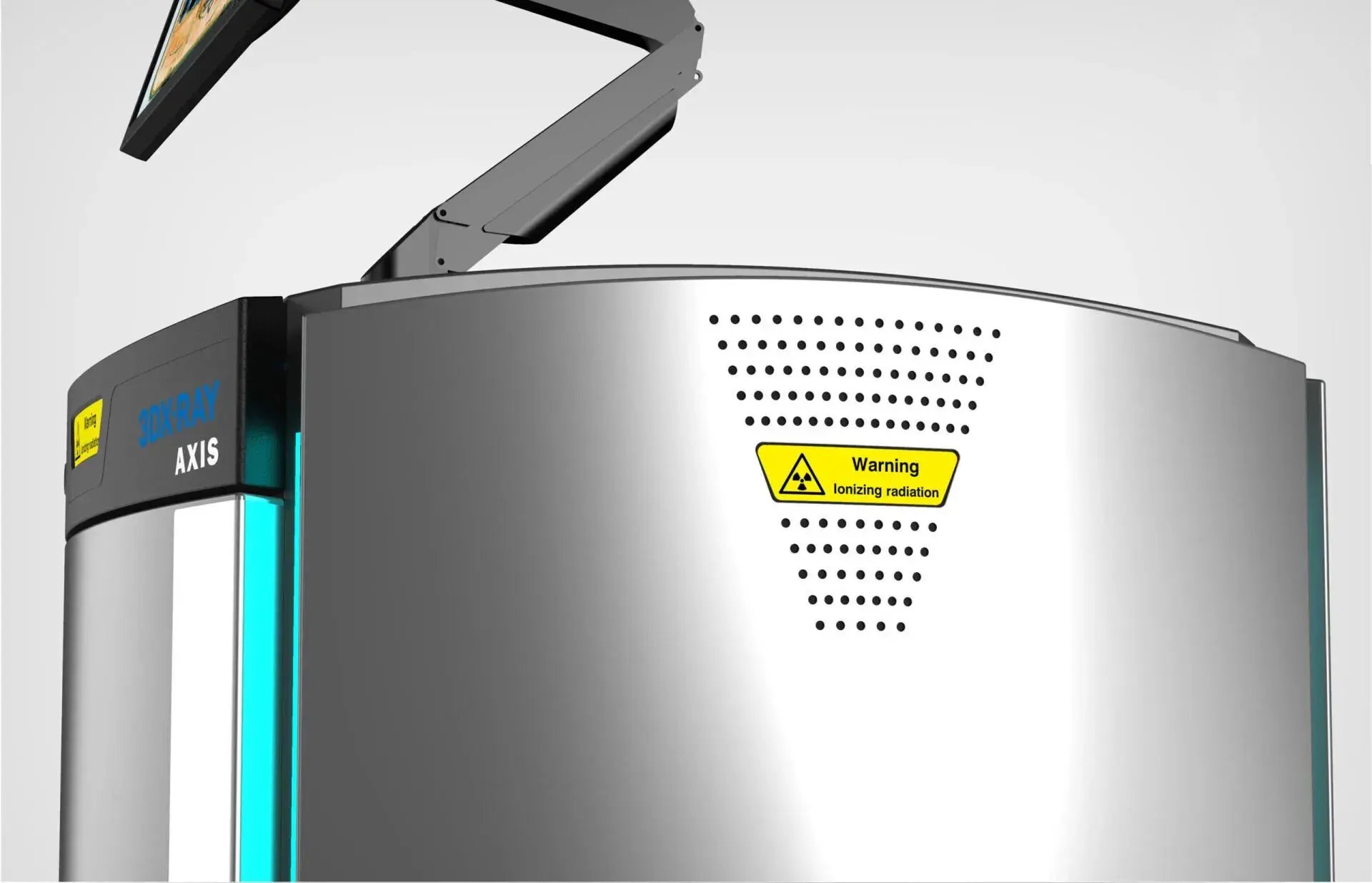

3D-X-Ray-CabinetScan-AXIS-Cxi-0006-scaled-1920w

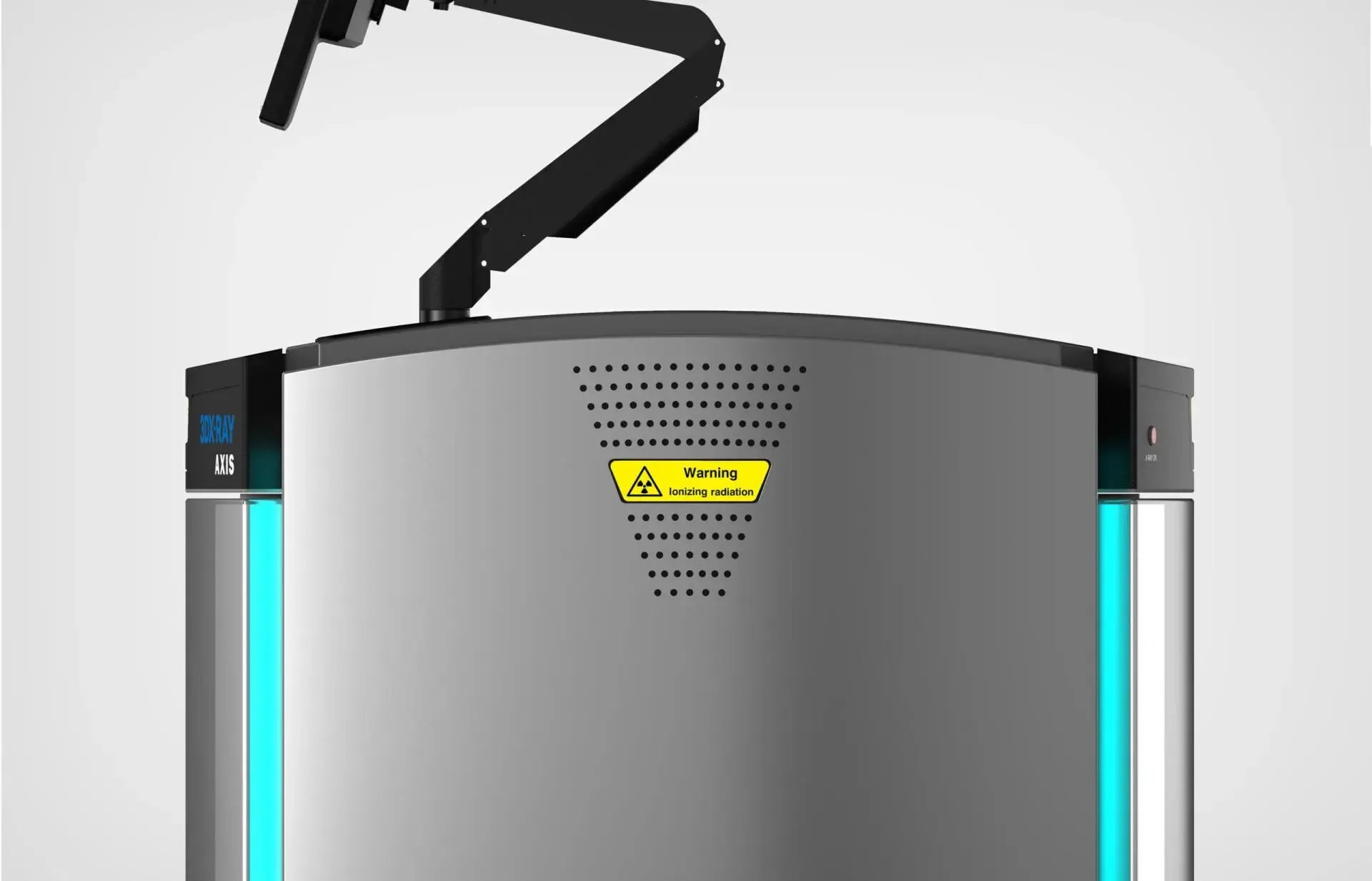

3D-X-Ray-CabinetScan-AXIS-Cxi-0005-scaled-1920w

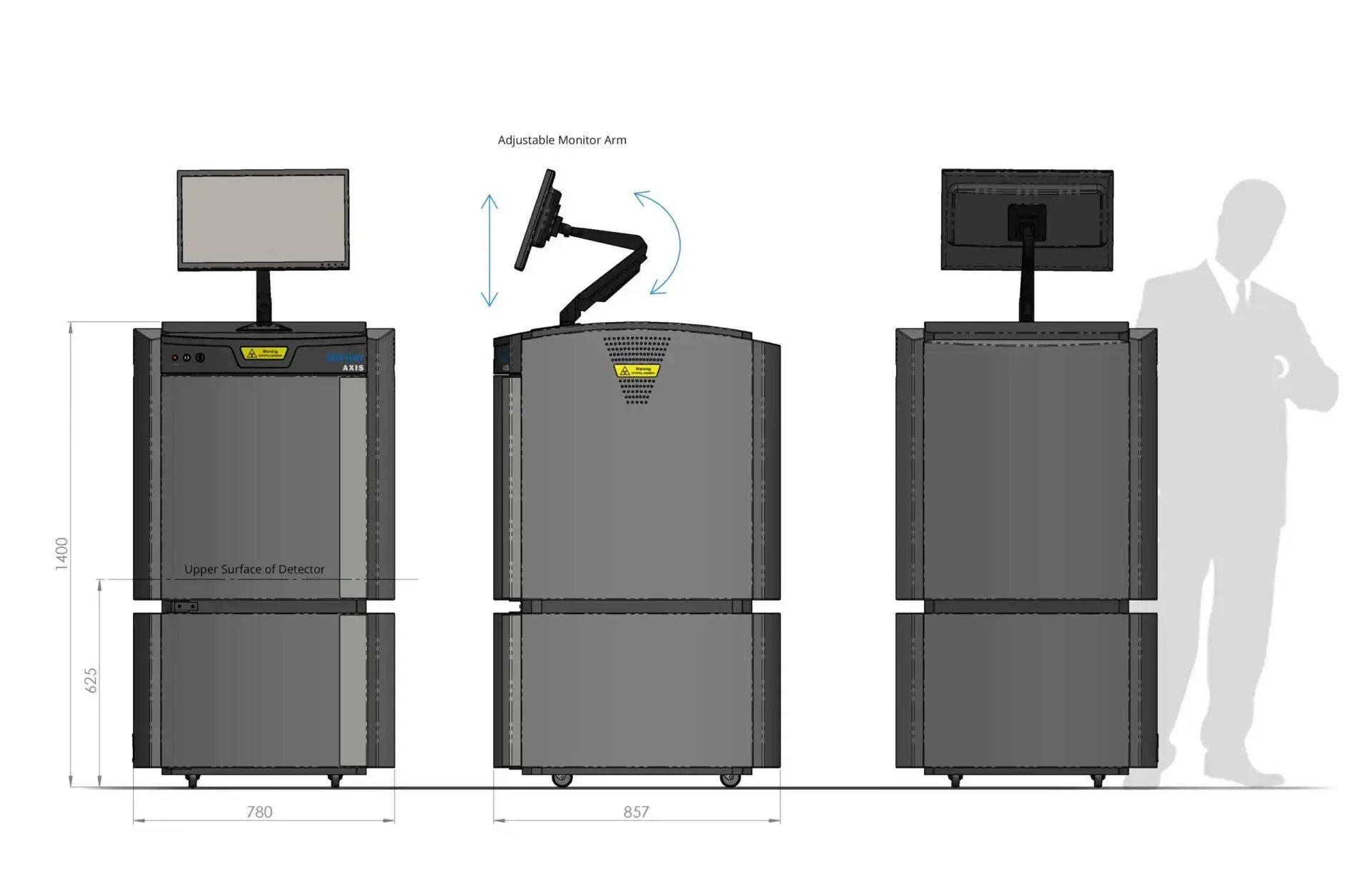

3D-X-Ray-CabinetScan-AXIS-Cxi-0004-scaled-1920w

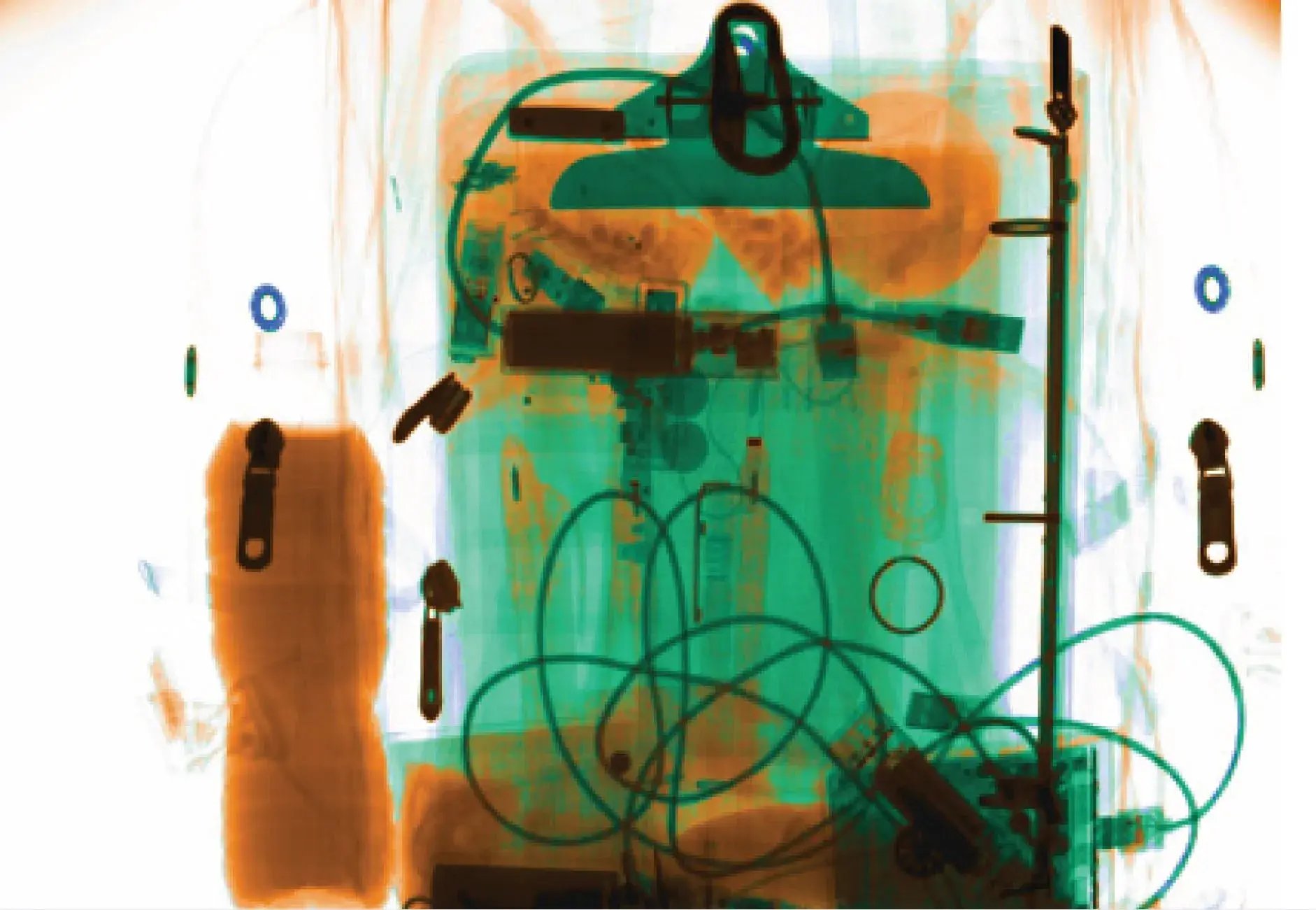

monitor-images-01-1920w

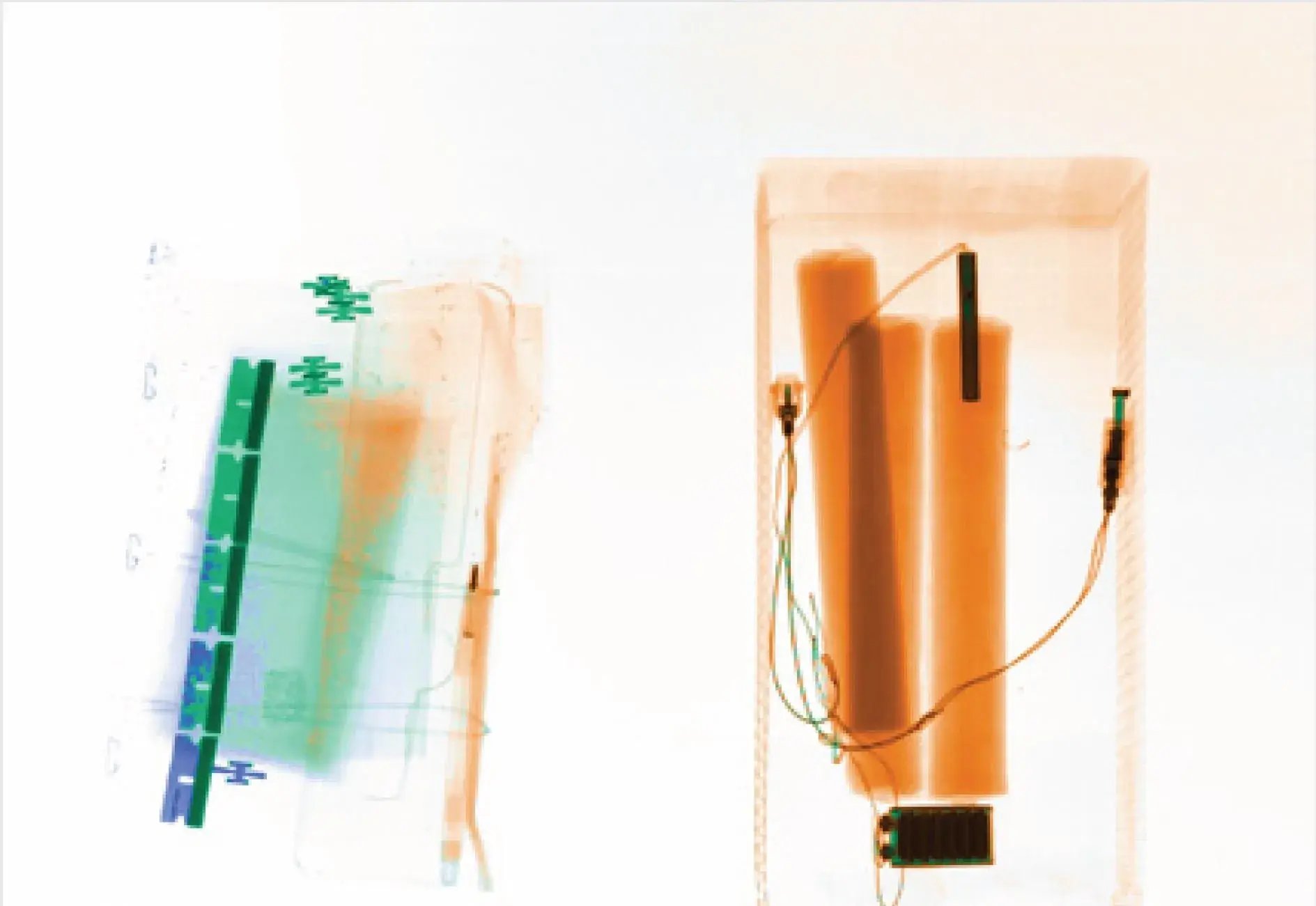

monitor-images-03-1920w-1
Benefits of the Cabinet X-Ray Scanner
Feature Specification
Dimensions 1480 x 780 x 800mm (HxWxD)
Chamber Size 580 x 498 x 688mm (HxWxD)
Viewable area 462 x 555mm
Weight 190kg
Image resolution 1458 x 1152 pixels
Standard display 22” LCD touchscreen
Wire resolution 40 AWG
Steel penetration 14mm
Beam orientation Vertical, downwards
Nominal anode voltage 90kV
Nominal anode current 1mA
Operating temperature 0oC to 40oC
Storage temperature -15oC to +50oC
Relative humidity 85% non-condensing
Radiation Less than 0.5µSv/h
Safety IRR17 compliant, conforms with Ionising Radiation Regulations, 2017 (UK) Complies with applicable international health and safety regulations.
Media safe Yes
Software features Image panning, background artefact removal. Advanced powder detection (APD). Automatic image archiving. True materials discrimination (organic, metals and inorganic).
